Description

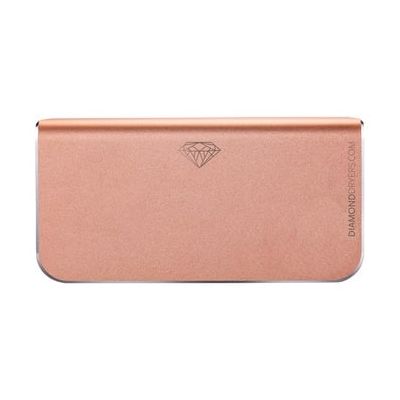

Diamond dryer has a beautiful, modern anodised finish, recognised as high quality and desirable from its use on gadgets. Despite of exceptional drying time, Diamond hand dryer uses much less power than traditional hot air hand driers. The unique shape and small size means that this dryer can be used in many diverse places. High intensity single port nozzle with blue LED light to guide users intuitively to the optimum drying zone. Perfect for washrooms with limited space.
This hand dryer has the lowest power consumption possible without compromising on performance. The brushless motor at the heart of the Diamond Dryer makes it extremely durable. Brushless motors are also incredibly energy efficient, so hands are dried faster and cheaper. Another benefit of a carbon free, digital brushless motor is there is less noise when in operation, which can be a problem with other high speed hand driers.
The only maintenance this hand dryer needs is a wipe with a soft cloth to keep it clean. There are no filters to change, motor brushes to replace or drip trays to empty. This hand dryer works, simply. These dryers can be hard wired by an electrician or used with a power cord and plug provided (option).
These dryers are so long lasting we give them an unrivalled seven year warranty.
■ AC220-240 Voltage
■ 50/60 Hz
■ 300 W power
■ Standby power: ≥ 0.5 W (satisfied by blue angel regulation)
■ Auto infrared touch free operation
■ Sensing range: 45° 4-12mm
■ Motor type: Brushless DC motor 300 Watts Life time ≥ 5,000,000 operation times based on 12 second drying time.
■ 24,500 RPM motor speed
■ Dries hands in 10 - 12 sec
■ Air Speed: 90 m/s (324 km/h)
■ Effective Airflow: 123.16 m³/h (72.45 CFM)
■ LED pointing Light: Blue LED
■ Noise: ≤ 75dB (A) @ 1 metre
■ Operating Cycle: 30 sec (The machine shuts down automatically after after 20 sec and 2 sec delay turn off from last read
■ External Material: Aviation aluminium materials Anodizing, 3mm T, brushed
■ Protection Device: Protect the main board against over current and over voltage, lightening over temperature of inside motor, 120 C +/-5 and over temperature of main board 85C auto reset safety overload.
■ Anti-theft Function: 2 Allen lock keys and lock with allen wrench of Machine
■ Internal Material: Heatproof PP fireproof 94VO
■ Internal Lead Wire: Temperature resistant 105°
■ No power Switch
■ IPX2 rated
■ Electrical Isolation: Class 1
■ Operating Temp: -10 - 55°C
■ Operating Humidity: 20-85% RH
Dimensions: 272 x 136 x 123 (mm)
Weight: 3.2kg
Warranty: 7-year guarantee
Approvals: CE, GS, RoHs, IPX3
Installation Note: Unit can be hard wired by an electrician or used with power cord and plug provided (option)
Exterior Screw Type: Two anti-theft lock screws and key wrench
