Description

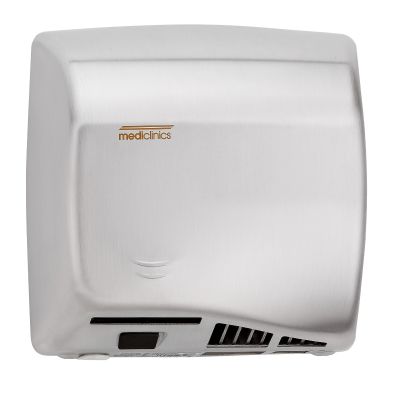

Mediclinics Speedflow Automatic Hand Dryer M06ACS in Satin Finish
The Speedflow® line of hand dryers is categorised within the eco-fast range of product but with the added value of complying with the requirements of ADAAG for accessibility of public washrooms. This regulation requires that the depth of the dryer cannot exceed 100 mm to facilitate access and movement for disabled persons in the washroom. The dryer is warm aired and sensor operated.
Key Features:
-
EU compliant for barrier-free washrooms
-
One of Europe's selling brands
-
Low energy use and quick dry time, keeping costs in use low
-
Slim design, perfect for small or accessible washrooms
-
Low noise ensures a quieter washroom environment
-
Strong steel cover provides resistance to vandalism
-
Suitable for very high-traffic facilities
Technical Features:
-
Complies with ADA requirements for a barrier-free washroom
-
Aluminium base plate, with 4 holes Ø7 mm for wall mounting. It includes silent-blocks to damp mechanical vibrations
-
Fire-resistant plastic UL 94-V0 fan scroll
-
Universal brush motor, 8,500 – 11,500 rpm, class A. RPM may be adjusted manually by means of a potentiometer. The motor includes a safety thermal cutoff
-
Aluminium centrifugal double asymmetrical inlet fan wheel
-
Waved wire NiCr heating element mounted on a mica frame that incorporates a self-resetable thermal cut-off which disconnect the whole appliance
-
The heating element can be disconnected by means of a jumper
-
Automatic switch-off after 60 seconds of continuous use
-
Fully adjustable IR electronic detection sensor by means of a potentiometer
Technical Specifications:
-
Voltage: 100-120, 208, 220- 240 V
-
Frequency: 50/60 Hz Electrical Isolation Class I Total power (H.E.(*) On) 1,010-1,150 W
-
Total power: (H.E.(*) Off) 110-250 W
-
Consumption: 1.3-4.8 A(240 V); 1.4-9.5 A(120 V)
-
Motor power: 110 - 250 W Rpm 8,500 – 11,500
-
Heating element power: 900 W
-
Weight: 3,8 Kg
-
Cover thickness: 1.5 mm
-
Drying time: 10 – 12 sec
-
Effective airflow: 70-94 m3/h – 1,170-1,568l/min
-
Air velocity: 120-180 Km/h
-
Air temperature: (10 cm distance/21ºC) 42 O C Noise level(**) (at 2m) 58-67 dB
-
Protection rating: IP23
-
Available in four finishes: White epoxy, Bright, Satin and Black epoxy​
-
Dimensions: 270mm (h) x 290mm (w) x 100mm (d)
* If you require more information, please refer to the downloads tab.
