Description

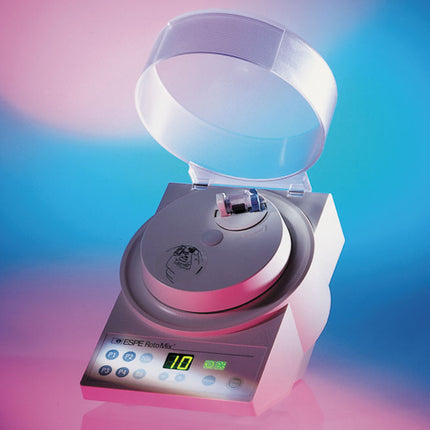

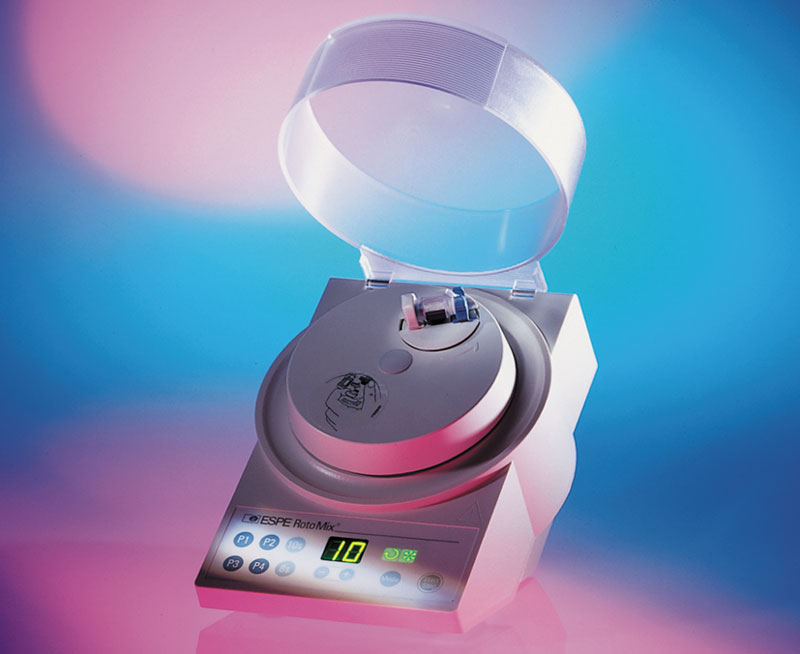

The RotoMix Capsule Mixing Device delivers a completely homogenous mix with the rotation mixing principle. Rotating platform with simultaneously counterrotating capsule holder produces the most complete mix Automatic centrifugal cycle produces a denser mix and virtually void-free material Mixing time reduced by 30% on average (compared with CapMix) Easy loading/unloading of capsules Extremely quiet operation Touch control panel Technical data: Drive unit: Ball-bearing motor with integrated self-resetting overheat cut-off Operating mode: Short-term operation, 2 min On/ 5 min Pause (to prevent needless motor heating) Controller: Microprocessor-controlled, high precision mixing time control by quartz timing mechanism Capsule holder: Self-locking Capsules: Diameter max.19 mm, total length max. 58 mm, length without tubes max. 38 mm, weight max. 6 g Housing: Housing and protective cover consist of high impact-resistant plastics Mixing speed: typically 2850 for 6 g-capsules Centrifugation speed: typically 2950 for 6 g-capsules Operating temperature: 18°C…40°C/64°F…104°F Humidity: max. 80% at 31°C/88°F, max. 50% at 40°C/104°F Main voltage: 120 V, 230 V, 50/60 Hz, for voltage setting refer to the rating plate Power requirements: 390 VA Fuses: 230 V: 2A time-lag fuse / 120 V: 3.2 A time-lag fuse Dimensions: (W x H x D) 180 x 210 x 250 mm Weight: 4000 g 76301
QAE005 (Each) 3M code: 76301
